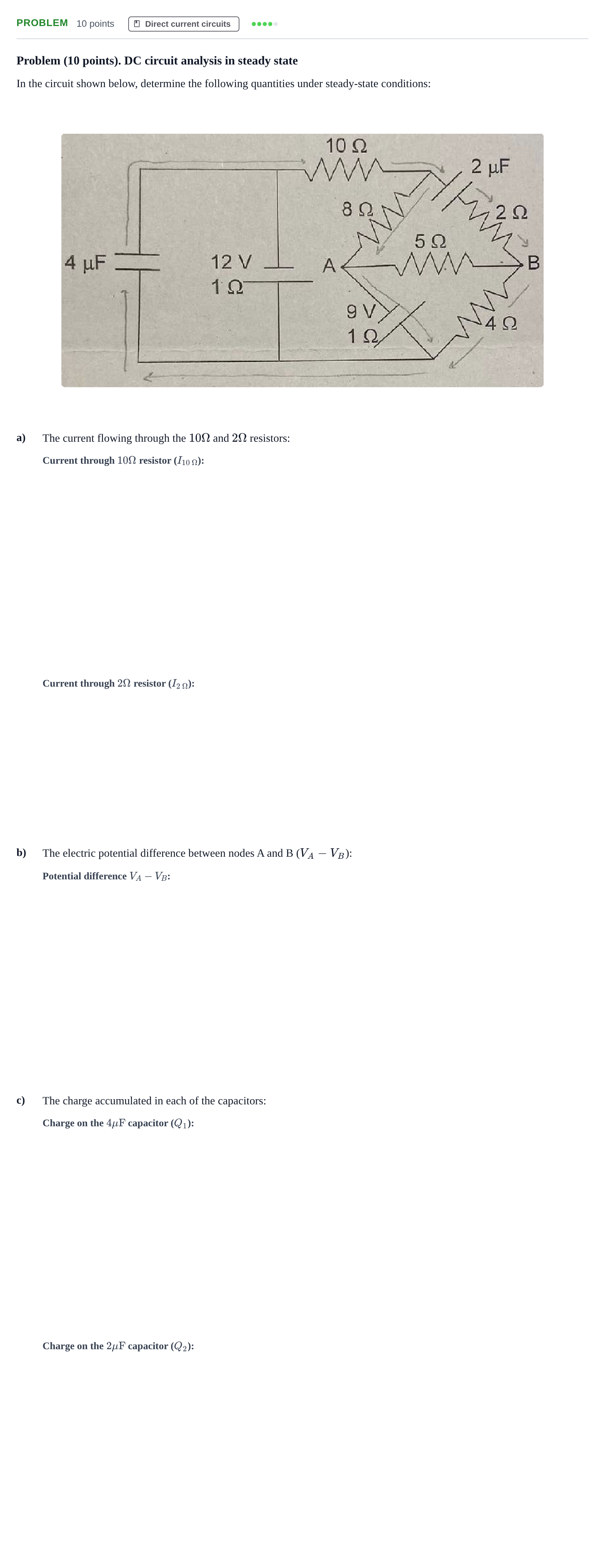

Ejercicio Problem · Física II URV Juny 2023

a. Current flowing through the 10 Ω resistor

Solución: $0{,}196$ A / $196$ mA / $\frac{39}{199}$ A

a. Current flowing through the 2 Ω resistor

Solución: $0$ A / $0$ mA

b. The electric potential difference between nodes A and B (VA - VB)

Solución: $4{,}60$ V / $4600$ mV / $\frac{915}{199}$ V

c. Charge accumulated in the 4 μF capacitor

Solución: $47{,}22$ μC / $0{,}0472$ mC / $4{,}72\cdot 10^{-5}$ C / $\frac{9396}{199}$ μC

c. Charge accumulated in the 2 μF capacitor

Solución: $12{,}33$ μC / $0{,}0123$ mC / $1{,}23\cdot 10^{-5}$ C / $\frac{2454}{199}$ μC
